Mobile- Karrier
Product Model :

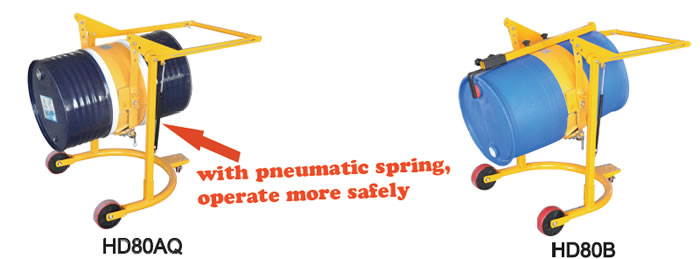

  • HD80AQ
  • HD80B

Mobile- Karrier       HD80AQ·HD80B

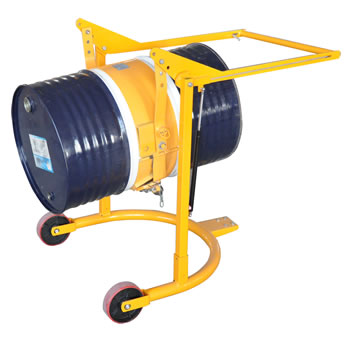

A truly quality-built drum handler.

Remarkable versatility! Mobile-karrier raises, transports, rotates, tilts and drains fully loaded drums.
It carries the full weight of the drum. Dual, fingertip operated locks secure the raised drum.
It can lock a drum in vertical position to avoid spills or horizontal position for draining through a faucet.
When unlocked, the drum may be turned end-over-end to agitate contents or tipped and held manually at any angle.
And it is very simple to move and steer on its 8” polyurethane roller bearing wheels and 4” swivel caster.
It is shipped partly disassembled to save freight costs.

Model

HD80AQ

HD80B

Lifting Capacity

(kg/lbs)

365/800

365/800

Lifting Height (Vertical)

(mm)

180

180

Lifting Height (Horizontal)

(mm)

457

457

Drum Size

Steel Drum Φ572600mm,
(55 gallon)

Steel Drum Φ572600mm,(55 gallon)
Plastic Drum Φ580
600mm,(210 Liter)

Operation

Manual Operation 90°~180°

Manual Operation 90°~180°

Fork Width (Inside)

(mm)

750

750

Dia of Front Wheel

(mm)

Φ180

Φ180

Dia of Steering Wheel

(mm)

Φ75

Φ75

Overall Dimension

(mm)

940×885×1180

940×885×1180

Net Weight

(kg)

42

48
